Fanuc M-2iA / 3S

Awaiting more stock
The Fanuc M-2 series designed for environments with demanding hygiene standards with IP69K degree of protection, provides the optimal space in processes that require speed and power, these robots provide improved productivity thanks to the speed servomotors that improve the times of cycle.

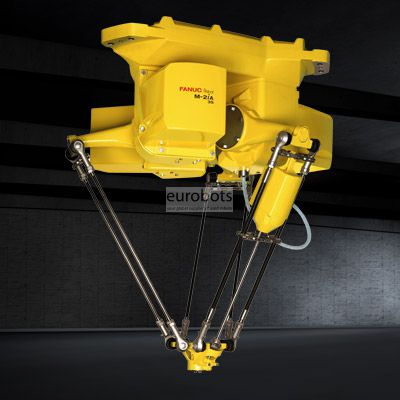

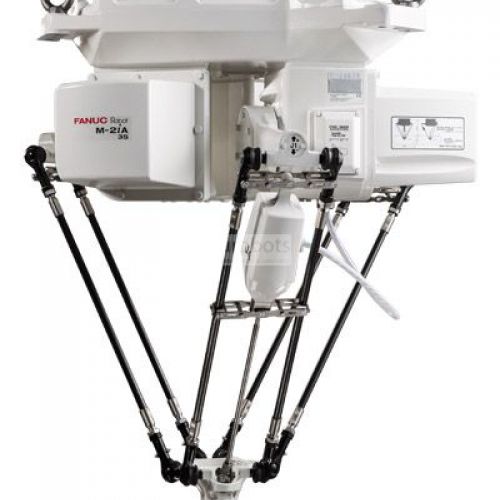

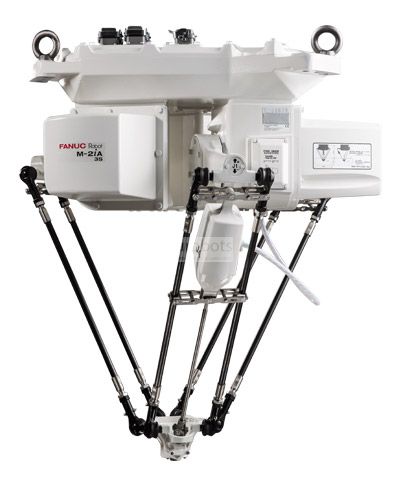

M-2iA / 3S ultra-compact delta robot characterized by the handling of high speeds in small parts with a 4-axis hollow wrist that provides a wide working envelope with loads of up to 3 kg optimizing productivity, certified for food handling, This robot is ideal in clean rooms as it supports high pressure steam cleaning and has a wrist protection level of IP69K.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 3 kg
Number of axis: 4
Maximum horizontal reach: 800 vmm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 800 x 300]  in mm by height in mm
Axis J4: 720°
Maximum speed (°/s)
Axis J1: -
Axis J2: -
Axis J3: -
Axis J4: 3500°/s
Axis J5: -
Axis J6: -
Robot applications
Pick and place
Material handling
Order picking


Penanganan suku cadang , Pengukuran , Perakitan bagian
