Fanuc M-3 iA / 12H

Awaiting more stock
The Fanuc M-3iA series designed for high-speed operations increasing the versatility in the handling of small parts, have a presentation of 3, 4 or 6 axes for high levels of performance, parallel link structure and wide range of work. IP67 standard protection makes this series ideal for environments with demanding hygiene standards such as the food, pharmaceutical and electronic industries.

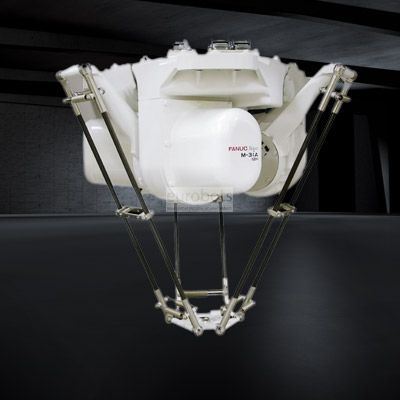

M-3 iA / 12H 3-axis delta robot, also known as "spider" robot with high-speed intelligent hollow wrist design that allows easy integration and minimizes cable deterioration by providing high performance in the production line. Ideal picking applications pick and place high speed. IP67 protection.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 12 kg
Number of axis: 3
Maximum horizontal reach: 1350 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1, J2, J3: [Ø 1350 x 500]  in mm by height in mm
Maximum speed (°/s)
Axis J1: -
Axis J2: -
Axis J3: -
Robot applications
Pick and Place
Order Picking


Penanganan suku cadang , Perakitan bagian
