Fanuk M-710iC / 20L

Awaiting more stock

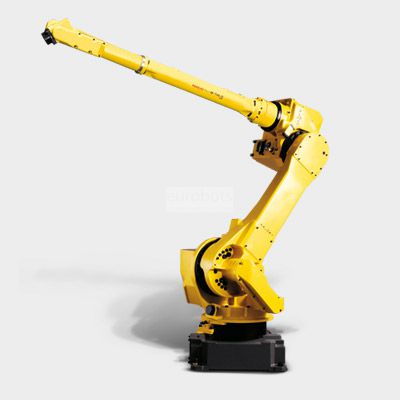

M-710iC / 20L industrial robot highly flexible and compact design with small footprint for easy access to narrow places, wrist with IP67 degree of protection. It is characterized by its long range of J3 arm of 3110 mm, this model is ideal for applications for machine assistance, grinding, polishing, deburring, cutting with water jet, washing and sealing within car bodies.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 20 kg
Number of axis: 6
Maximum horizontal reach: 3110 mm
Repeatability: ± 0.06 mm
Controller: R30iB

Motion range (°)

Axis J1: 360°
Axis J2: 225°
Axis J3: 432°
Axis J4: 400°
Axis J5: 280°
Axis J6: 900°

Maximum speed (°/s)

Axis J1: 175°/s
Axis J2: 175°/s
Axis J3: 180°/s
Axis J4: 350°/s
Axis J5: 360°/s
Axis J6: 600°/s

Robot applications

Machine tending
Grinding
Polishing
Deburring
Cutting with water jet
Washing
Sealing within car bodies.
