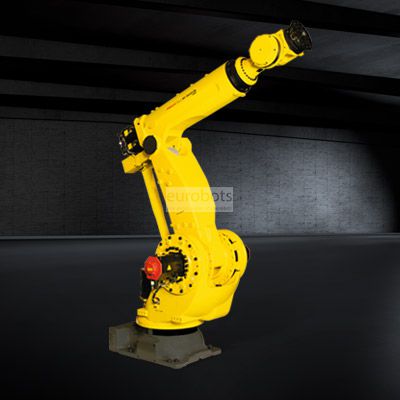

Fanuk M-900iB / 280

Awaiting more stock
Fanuc M-900 series designed for the handling of heavy loads, with a highly firm structure, the wrist motors are installed on the shoulder for greater protection in operations. high load capacity between 150 and 700 kg and an approximate arm reach of 3.7 m. He specializes in a wide range of applications of handling and force such as heavy workpieces, fast palletizing and precise drilling for heavy work. Providing great versatility, maximum savings in the workspace and faster cycle times. Variety of mounting options for greater flexibility.
M-900iB / 280 6-axis industrial robot capable of reducing cycle times, with J3 arm structure designed and specialized in high rigidity for screwing with flow bit and roller hem; Tested according to ISO 9283 stiffness standards and shows a very high level of static approval. It is suitable for processes where accuracy is essential and demand rigidity.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.

Main specifications

Maximum Load of Robot: 280 kg
Number of axis: 6
Maximum horizontal reach: 2655 mm
Repeatability: ± 0.1 mm
Controller: R30iB

Motion range (°)

Axis J1: 370°
Axis J2: 151°
Axis J3: 224°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 110°/s
Axis J2: 105°/s
Axis J3: 100°/s
Axis J4: 110°/s
Axis J5: 110°/s
Axis J6: 180°/s

Robot applications

Welding
Machining
Parts handling
Polishing
Assembly

उपयोग

Pengelasan busur , Pengelasan spot , Tekan merawat , Mesin , Penanganan suku cadang , Poles , Pengukuran , Perakitan bagian , Lem - Ikatan perekat , Stud welding
