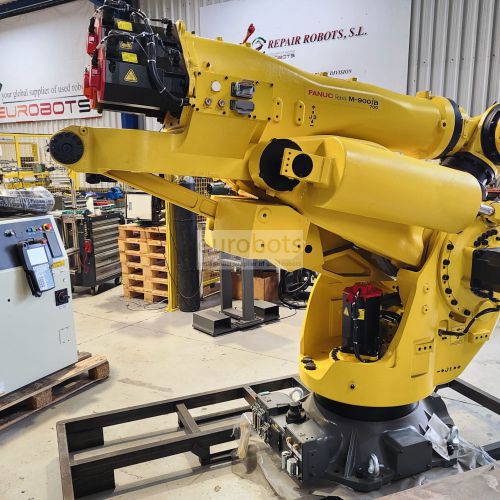

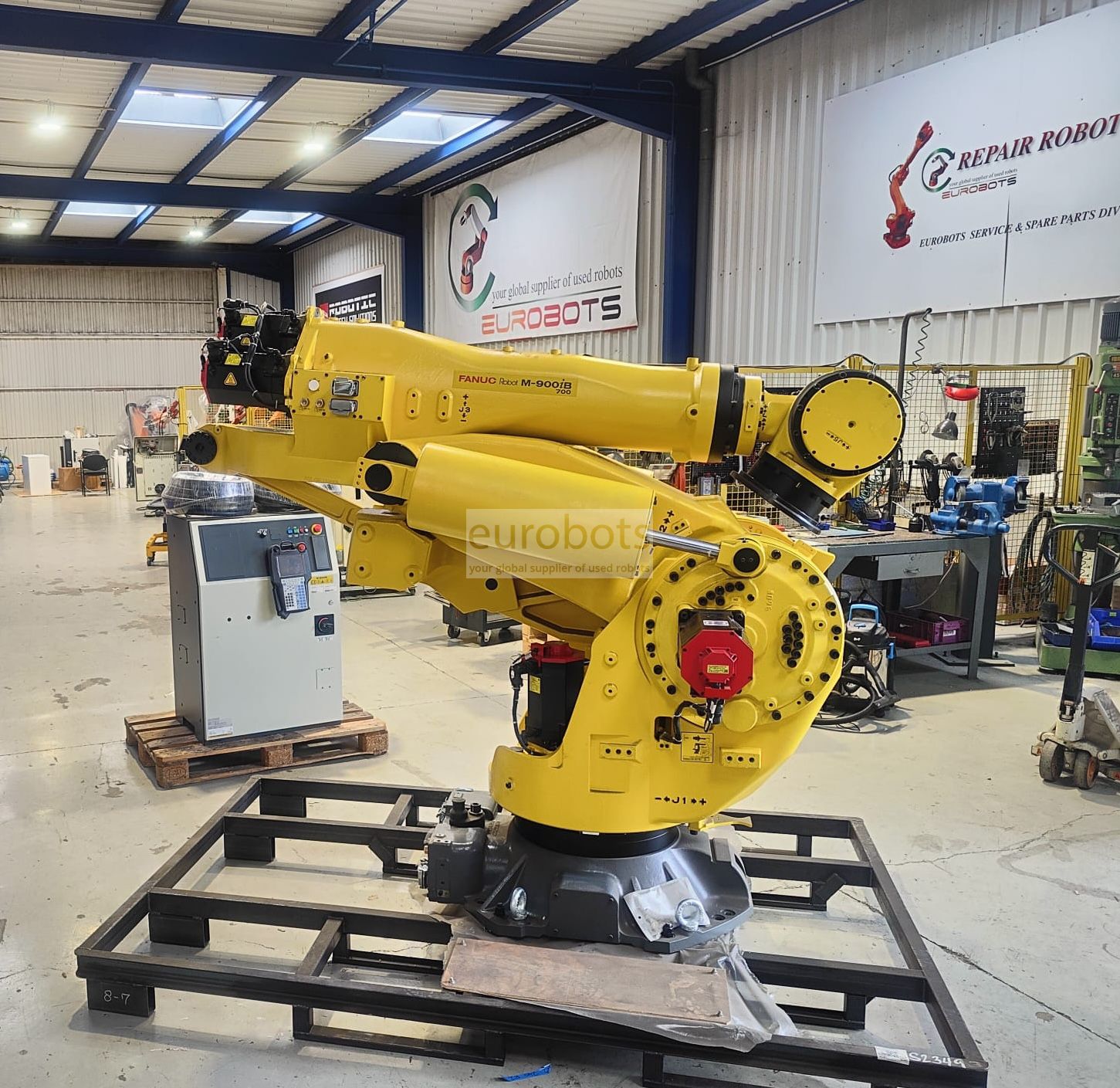

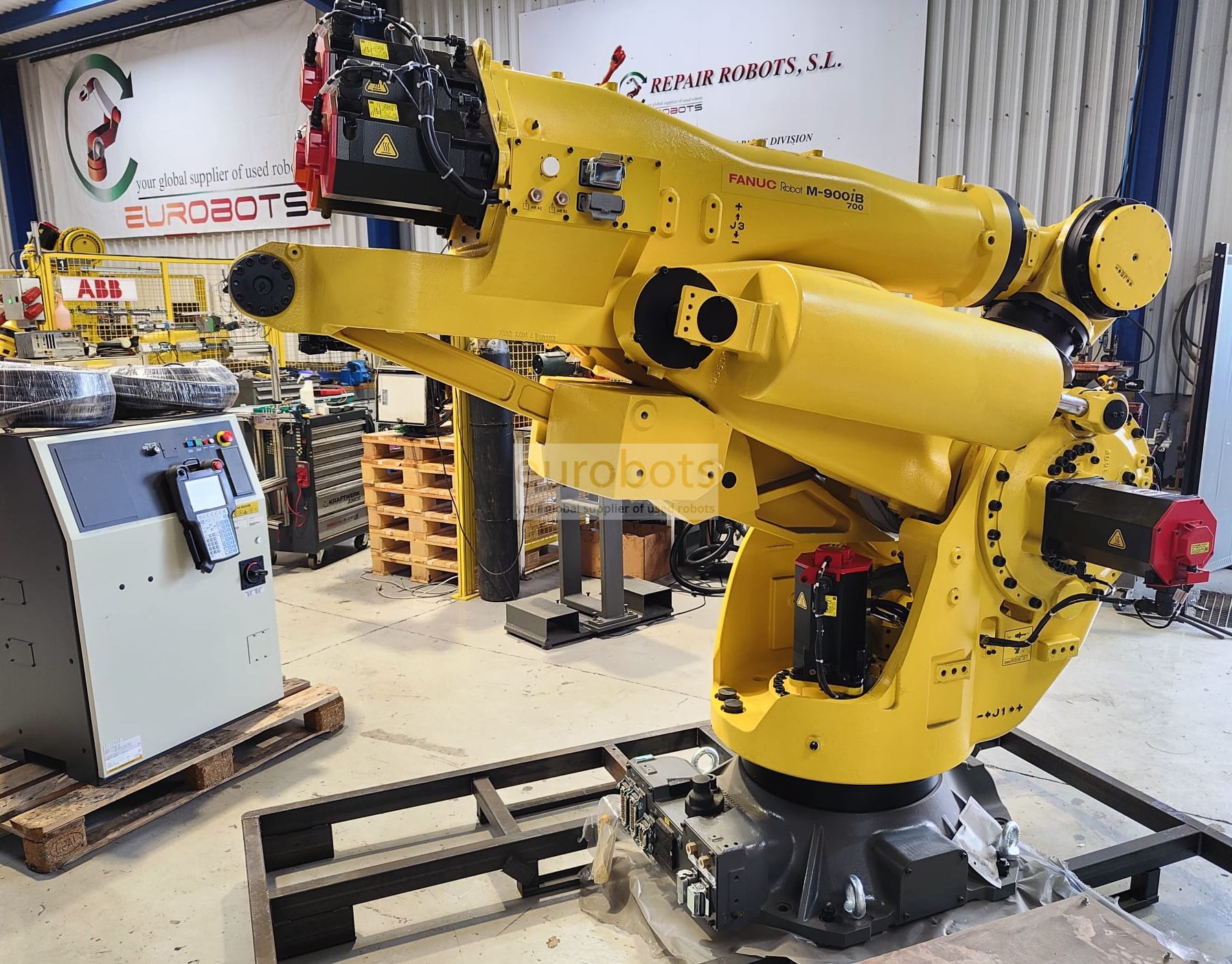

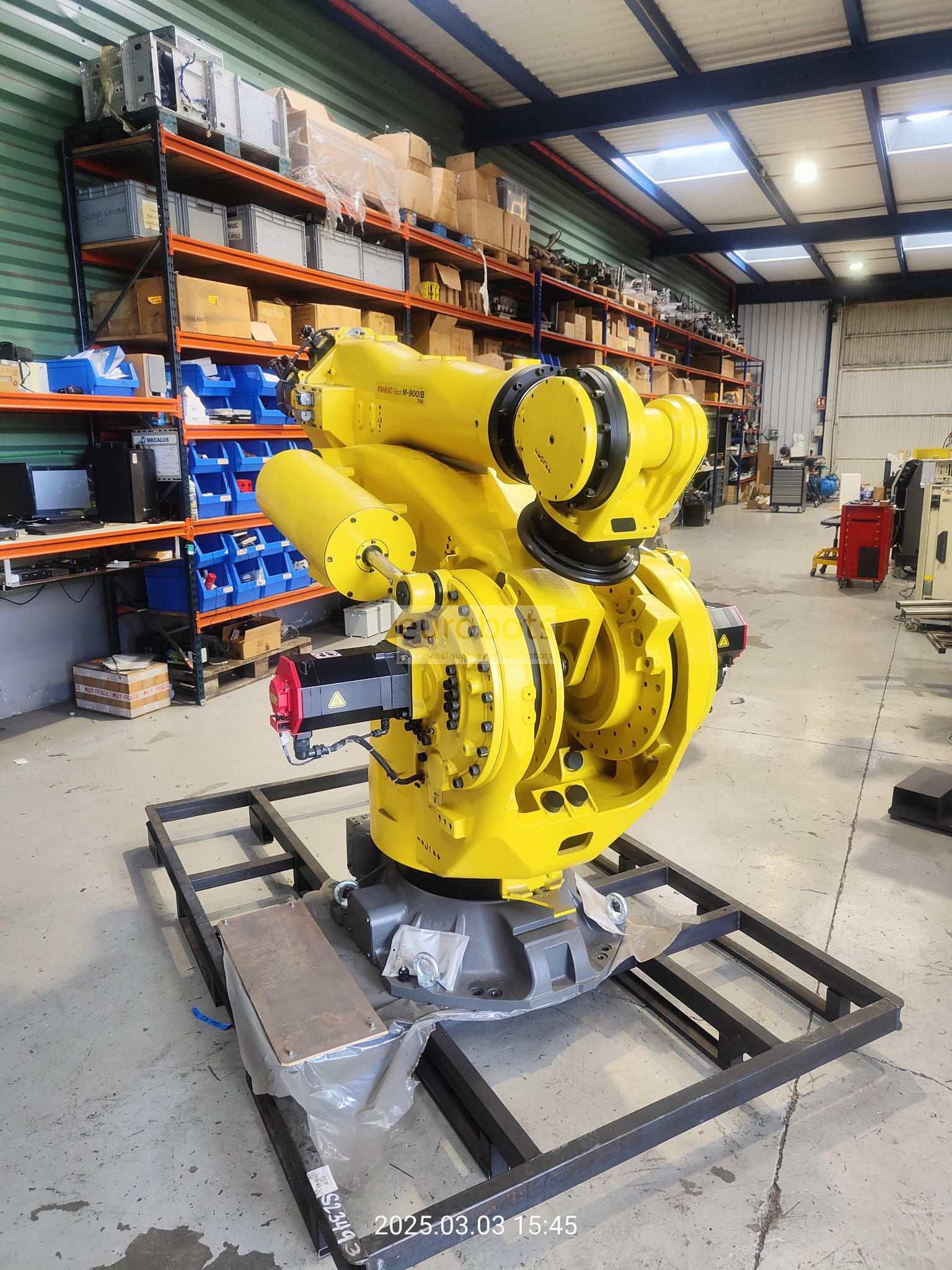

Fanuc M-900iB / 700

Awaiting more stock
Fanuc M-900 series designed for the handling of heavy loads, with a highly firm structure, the wrist motors are installed on the shoulder for greater protection in operations. high load capacity between 150 and 700 kg and an approximate arm reach of 3.7 m. He specializes in a wide range of applications of handling and force such as heavy workpieces, fast palletizing and precise drilling for heavy work. Providing great versatility, maximum savings in the workspace and faster cycle times. Variety of mounting options for greater flexibility.
M-900iB / 700 industrial robot designed with a wrist capacity that can handle payloads of up to 700 kg; With a high rigidity structure that allows stability when transferring heavy parts, this robotic model can be adapted to any application of constant force. The wrist has a degree of IP67 protection and can withstand harsh environments and conditions.

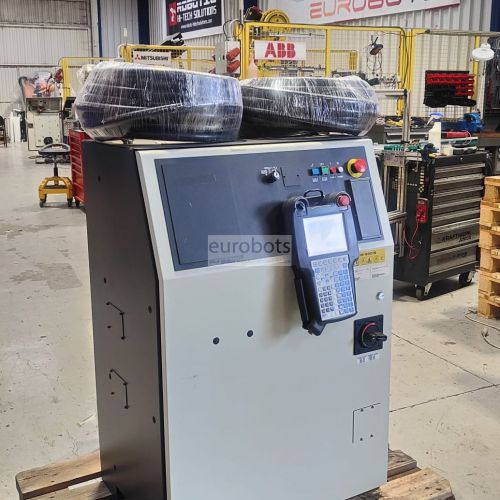

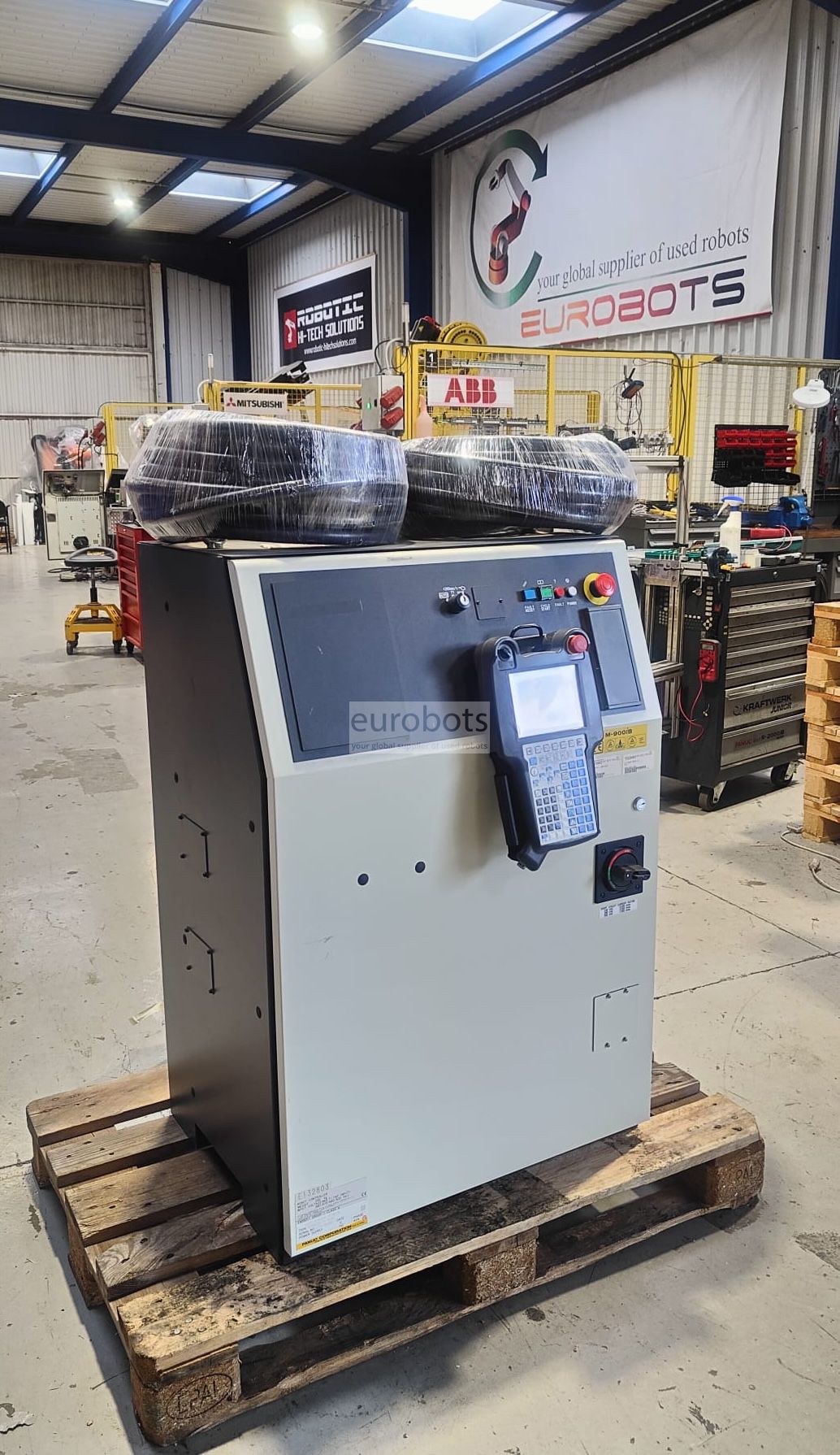

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 700 kg
Number of axis: 6
Maximum horizontal reach: 2832 mm
Repeatability: ± 0.1 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 154°
Axis J3: 160°
Axis J4: 720°
Axis J5: 244°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 80°/s
Axis J2: 80°/s
Axis J3: 80°/s
Axis J4: 100°/s
Axis J5: 100°/s
Axis J6: 160°/s
Robot applications


Pengelasan busur , Pembuatan palet , Memuat dan membongkar suku cadang , Mesin , Penanganan suku cadang , Poles , Perakitan bagian
