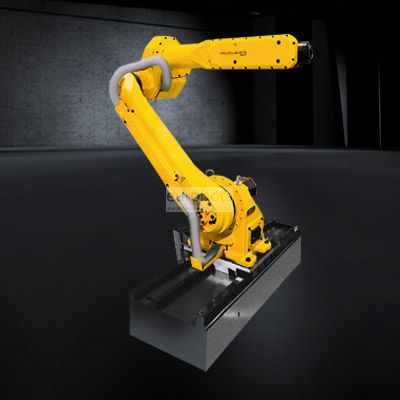

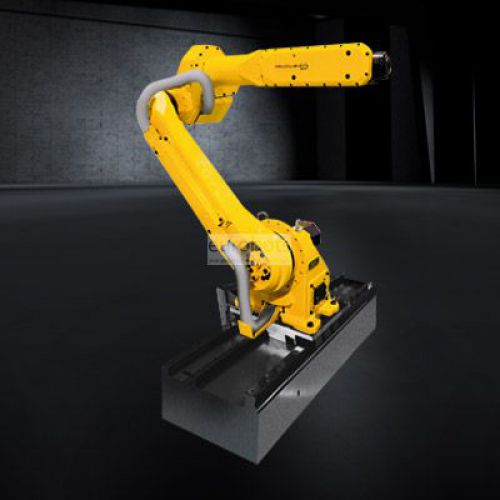

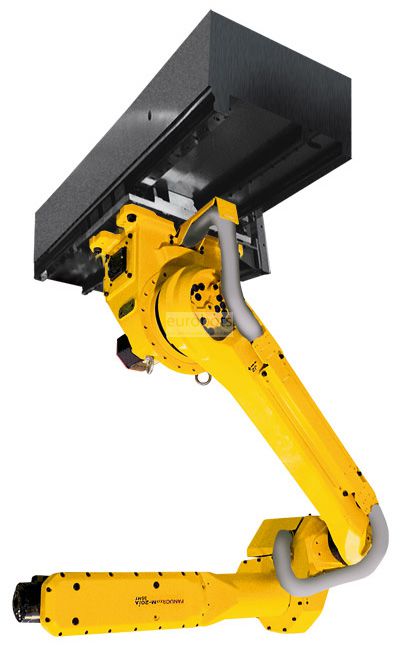

Fanuc M-20iA / 35MT

Awaiting more stock

The M-20iA / 35MT 6-axis industrial robot with high load capacity, greater inertia of the wrist with excellent cycle times, offers great versatility, superior assembly that provides maximum floor space savings, easy maintenance, costs Reduced from the system with flip and non-flip configuration, it is ideal for applications involving multiple machines within a large envelope.

The M-20 series of Fanuc arm and wrist hollow design specialized in multi-purpose work, this series is characterized by its useful load capacity, arm reach and speed. can handle up to a load of 35 kg with optimal performance, ideal for handling applications of different materials, have a shelf on the back of the arm that provides easy installation of the peripheral equipment.

R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 35 kg
Number of axis: 6
Maximum horizontal reach: Depending on rail specification
Repeatability: ± 0.04 mm
Controller: R30iB
Motion range (°)
Axis J1: Depending on rail specification
Axis J2: 300°
Axis J3: 586°
Axis J4: 400°
Axis J5: 280°
Axis J6: 900°
Maximum speed (°/s)
Axis J1: Depending on rail specification
Axis J2: 180°/s
Axis J3: 200°/s
Axis J4: 350°/s
Axis J5: 350°/s
Axis J6: 400°/s
Robot applications
Handling parts
Loading and unloading


Memuat dan membongkar suku cadang , Penanganan suku cadang
