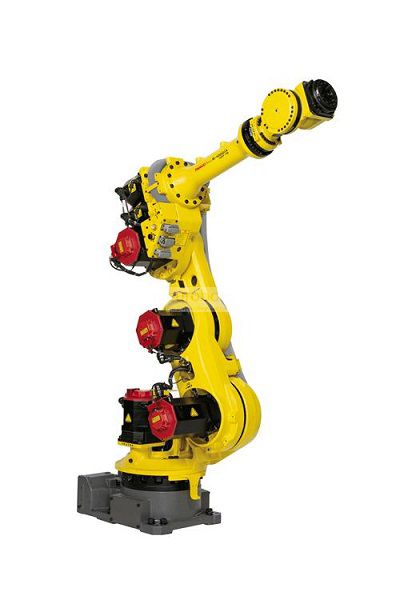

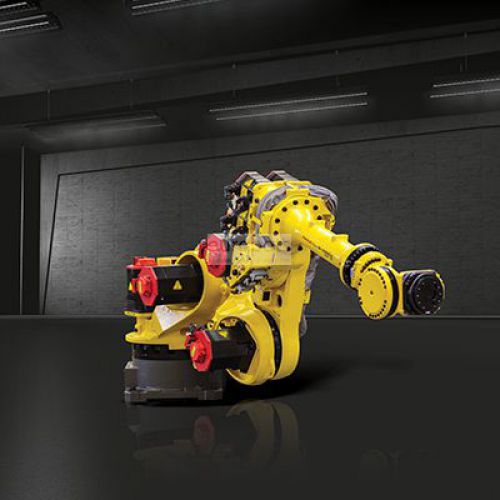

Fanuc R-1000iA / 120F-7B

Awaiting more stock
The R-1000iA series of Fanuc designed with 5 or 6 axes a handling capacity of up to 130 kg and a range of up to 2.2 meters. He is a specialist for material handling, palletizing and spot welding of medium payloads, slim space-saving design, characterized by high acceleration speeds, optimization of cycle times.

Industrial robot R-1000iA / 120F-7B specialized in material handling and spot welding in small spaces, is more flexible and agile thanks to its design based on an additional seventh axis in its second arm that allows it to work inside small cells of work and limited areas. This robot is perfect for handling heavy loads.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 120 kg
Number of axis: 7
Maximum horizontal reach: 2230 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 360°
Axis J2: 200°
Axis J3: 385°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
Axis J7: 225°
Maximum speed (°/s)
Axis J1: 130°/s
Axis J2: 110°/s
Axis J3: 120°/s
Axis J4: 170°/s
Axis J5: 170°/s
Axis J6: 250°/s
Axis J7: 130°/s
Robot applications
Machine Loading
Machine Tending
Material Handling
Spot Welding


Pengelasan spot , Pembuatan palet , Penanganan suku cadang
