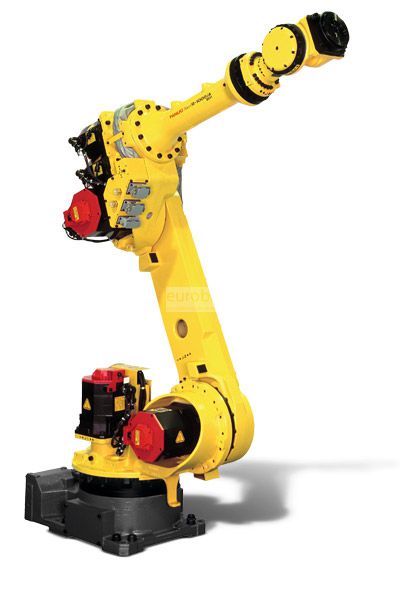

Fanuk R-1000iA / 80F

Awaiting more stock
The R-1000iA series of Fanuc designed with 5 or 6 axes a handling capacity of up to 130 kg and a range of up to 2.2 meters. He is a specialist for material handling, palletizing and spot welding of medium payloads, slim space-saving design, characterized by high acceleration speeds, optimization of cycle times.

R-1000iA / 80F industrial robot characterized by its high-speed performance capable of rapid acceleration and improved cycle times in a variety of operations; wrist motors located near the back of the J3 axis. This keeps them isolated from dangerous environments. IP67 protection level. Ideal for welding, handling and palletizing applications offering better cycle times and higher productivity.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 80 kg
Number of axis: 6
Maximum horizontal reach: 2230 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus

Motion range (°)

Axis J1: 360°
Axis J2: 245°
Axis J3: 360°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 170°/s
Axis J2: 140°/s
Axis J3: 160°/s
Axis J4: 230°/s
Axis J5: 230°/s
Axis J6: 350°/s

Robot applications

Handling  parts
Welding
Palletising
