Fanuc R-1000 iA / 80H

Awaiting more stock
The R-1000iA series of Fanuc designed with 5 or 6 axes a handling capacity of up to 130 kg and a range of up to 2.2 meters. He is a specialist for material handling, palletizing and spot welding of medium payloads, slim space-saving design, characterized by high acceleration speeds, optimization of cycle times.

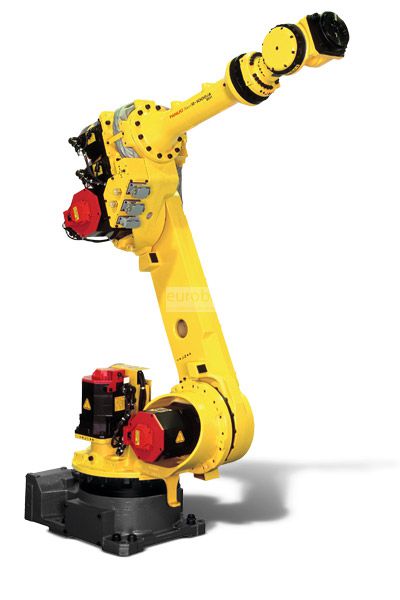

Industrial robot R-1000 iA / 80H 5 axes of thin and small structure saving space on the floor offering faster transfer speeds ideal for compact work cells. This model is suitable for palletizing, material handling, and arc welding and spot welding applications.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 80 kg
Number of axis: 5
Maximum horizontal reach: 2230 mm
Repeatability: ± 0.03 mm
Controller: R30iB Plus
Motion range (°)
Axis J1: 360°
Axis J2: 245°
Axis J3: 215°
Axis J4: 20°
Axis J5: 720°
Maximum speed (°/s)
Axis J1: 185°/s
Axis J2: 180°/s
Axis J3: 180°/s
Axis J4: 180°/s
Axis J5: 500°/s
Robot applications
Arc Welding
Material Handling
Spot Welding


Pengelasan busur , Pengelasan spot , Pembuatan palet , Penanganan suku cadang
