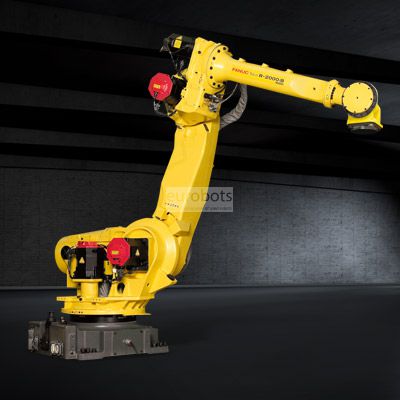

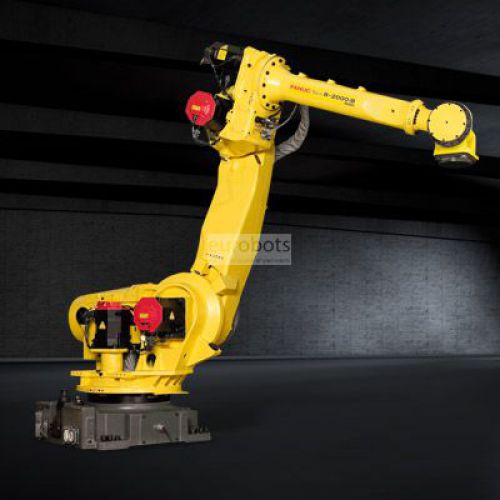

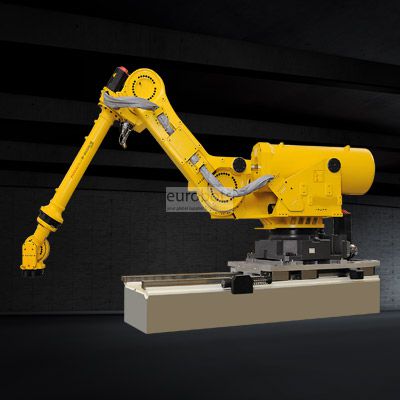

Fanuc R-2000iB / 100P

Awaiting more stock
Fanuc R-2000 series designed material handling applications and spot welding, with load capacity between 100 and 270 kg, extended reach, while keeping small footprints to ensure they fit in any plant area.

R-2000iB / 100P industrial robot mounted on pedestal with space-saving design and optimal flexibility, the sixth axis of this version allows a high speed position on inclined vanes and the rotation of the piece of 360 degrees, the J3 arm is very thin , which allows easy access to confined spaces. Ideal for difficult palletizing applications providing fastness and versatility, minimizing cycle times.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications
Maximum Load of Robot: 100 kg
Number of axis: 6
Maximum horizontal reach: 3500 mm
Repeatability: ± 0.3 mm
Controller: R30iB
Motion range (°)
Axis J1: 360°
Axis J2: 185°
Axis J3: 365°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°
Maximum speed (°/s)
Axis J1: 110°/s
Axis J2: 90°/s
Axis J3: 110°/s
Axis J4: 120°/s
Axis J5: 120°/s
Axis J6: 190°/s
Robot applications


Pembuatan palet , Penanganan suku cadang , Perakitan bagian
