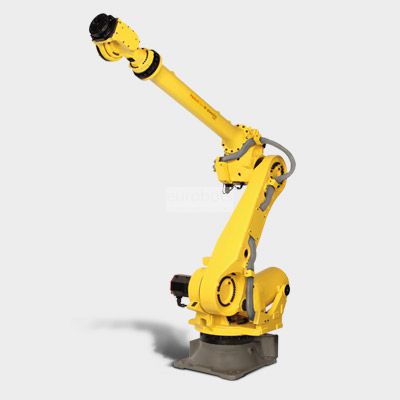

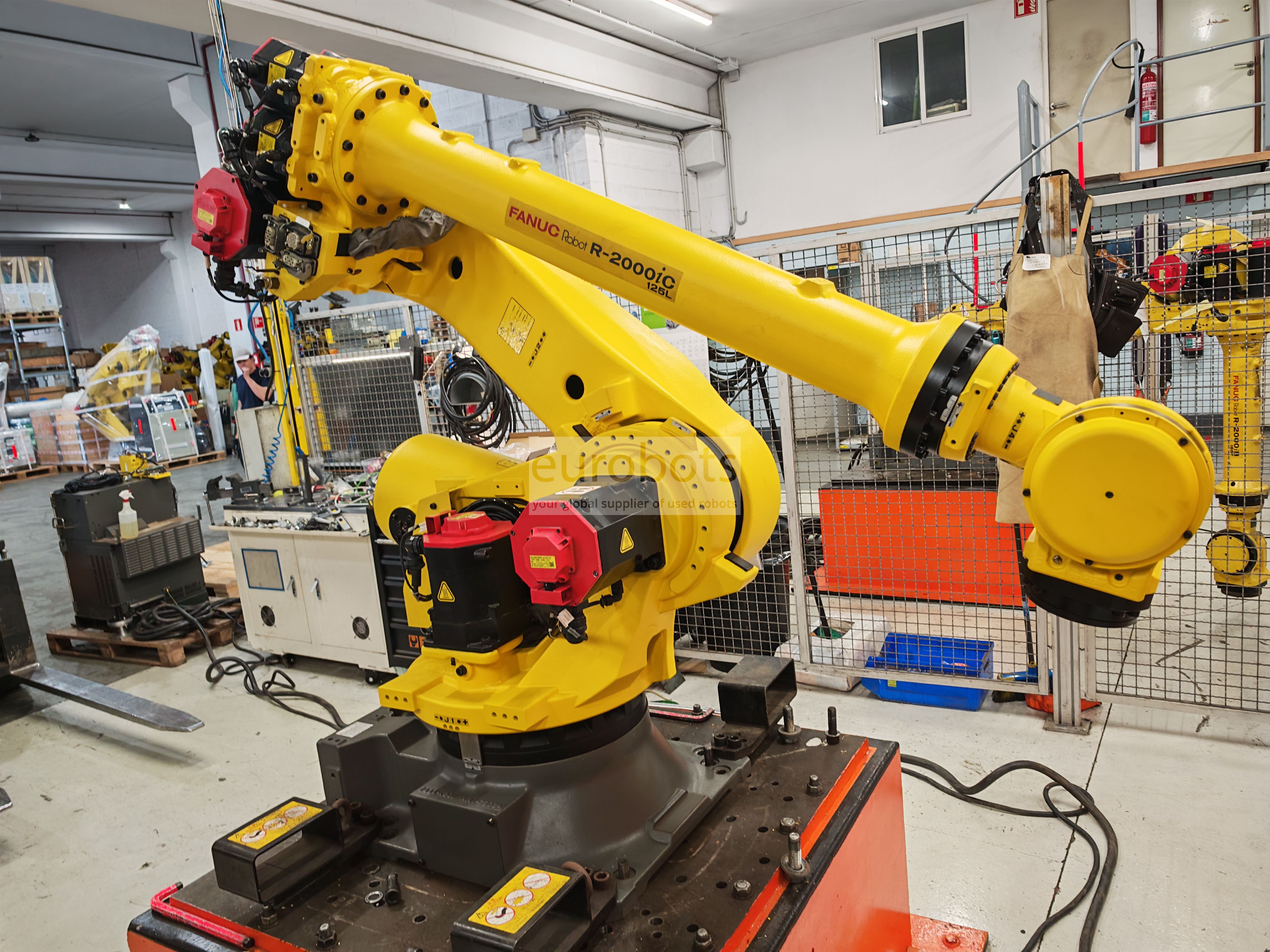

Fanuk R-2000iC / 125L

Awaiting more stock
Fanuc R-2000 series designed material handling applications and spot welding, with load capacity between 100 and 270 kg, extended reach, while keeping small footprints to ensure they fit in any plant area.
R-2000iC/125L 6-axis industrial robot with wide reach of up to 3100 mm providing high flexibility, offers high precision advantages and a large payload of 125 kg, ideal for high-speed welding processes, assembly, transfer of parts, elimination of material, loading and dispensing. Providing high performance, better system operating times, easy installation.
R-30iB control system
Latest generation of advanced, efficient, compact and stackable FANUC technology, improved productivity, with modern integrated hardware and more than 250 software functions. Designed to be more intuitive, it optimizes the power to decrease energy consumption, high performance in cycle times with greater speed and precision.
It has a high-performance integrated programmable PMC control system that can access the complete robot I / O system, which allows easy separation or asynchronous control of peripheral devices without this having negative effects on robot performance. The different mounting positions allow you to save space, easy integration into production cells, installation of various robots. The R-30iB control systems use FANUC's patented secure software, which means you do not need to worry about viruses, hackers or stability issues. With iPendant Touch intuitive, smarter and easier to use.
Main specifications

Maximum Load of Robot: 125 kg
Number of axis: 6
Maximum horizontal reach: 3100 mm
Repeatability:± 0.05 mm
Controller: R30iB Plus

Motion range (°)

Axis J1: 370°
Axis J2: 136°
Axis J3: 301°
Axis J4: 720°
Axis J5: 250°
Axis J6: 720°

Maximum speed (°/s)

Axis J1: 130°/s
Axis J2: 115°/s
Axis J3: 125°/s
Axis J4: 180°/s
Axis J5: 180°/s
Axis J6: 260°/s

Robot applications

Spot welding
Assembly
Transfer of parts
Elimination of material
Load
Dispensing
