ABB IRB 2400

Awaiting more stock

सूचना
विनिर्दिष्टियाँ

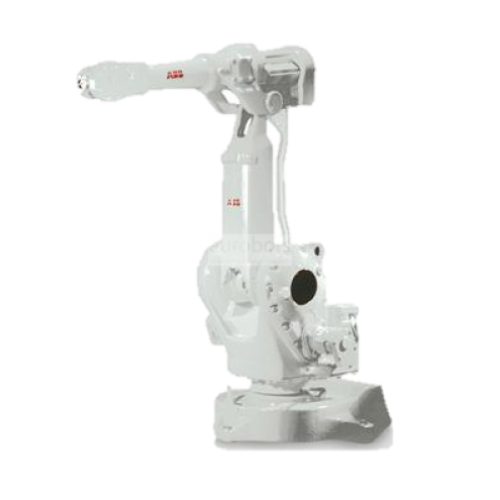

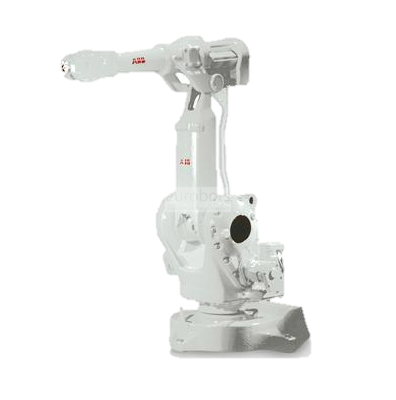

The IRB 2400 robot is reliable providing high production time, short cycle times, versatility in inverted assembly, characterized by its high accuracy for applications such as material handling, machine assistance, arc welding, cutting, deburring, grinding, polished.

Main specifications

Version robot	IRB 2400-10	IRB 2400-16
Maximum Load of Robot	12	20
Number of axis	6	6
Maximum reach	1.55	1.55
Position repeatability RP	0.05	0.35
Path repeatability RT	0.05	0.35

Motion range (°)

Version robot	IRB 2400-10	IRB 2400-16
Axis 1	360° (± 30° for wall mounted robot)	360° ± 30° for wall mounted robot
Axis 2	210°	210°
Axis 3	125°	125°
Axis 4	400° Option Unlimited	400° Option Unlimited
Axis 5	240°	240°
Axis 6	800° Option Unlimited	800° Option Unlimited

Maximum speed (°/s)

Version robot	IRB 2400-10	IRB 2400-16
Axis 1	150°/s 90° For wall mounted version	150°/s
Axis 2	150°/s 90° For wall mounted version	150°/s
Axis 3	150°/s 90° For wall mounted version	150°/s
Axis 4	360°/s	360°/s
Axis 5	360°/s	360°/s
Axis 6	450°/s	450°/s

उपयोग

Pengelasan busur , Penanganan suku cadang , Poles , Perakitan bagian
