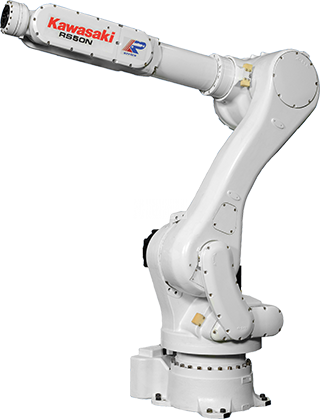

Kawasaki RS050N

Awaiting more stock

The RS050N is part of the series of small and medium load kawasaki R robots recognized for their compact design, light arm and high revolution engines that perform their functions at a high speed providing greater performance. The RS050N robot has a large increase in its reach capacity and rotation range of each axis that allows a wide working space. Thanks to its high performance motors and its rigid arm provide a high wrist torque optimizing its load capacity among its integrated features we find pneumatic lines incorporated and internal wiring that allows easy installation of cables, tubes or other equipment. arm of the RS050N makes it a space-saving robot for easy installation and maintenance.

E controllers are compact, reliable and high performance, have advanced technology in the CPU allowing greater productivity and trajectory control. Wide range of industrial applications supported by Kawasaki AS technology that uses a programming language that provides sequence control; possible expansion of up to 10 external axes for complete control of 16 axes. Easy maintenance and diagnosis thanks to its modular components and limited cables.
E32 controller
  • Ideal for primary energy distribution voltage of each region
  • Greater capacity for expansion
  • Closed structure with indirect cooling system
  • Digital servo system
  • I / O channels 32 (max128)
Main specifications
Maximum Load of Robot: 50 kg
Number of axis: 6
Maximum horizontal reach: 2,100 mm
Maximum vertical reach: 3,697 mm
Repeatability: ±0.07 mm
Controller: E32
Motion range (°)
Axis JT1: ±180°
Axis JT2: +140°/-105°
Axis JT3: +135°/-155°
Axis JT4: ±360°
Axis JT5: ±145°
Axis JT6: ±360°
Maximum speed (°/s)
Axis JT1: 180°/s
Axis JT2: 180°/s
Axis JT3: 185°/s
Axis JT4: 260°/s
Axis JT5: 260°/s
Axis JT6: 360°/s
Robot applications
Machine Tending
Material Handling
Material Removal


Pengelasan spot , Penanganan suku cadang , Pengukuran , Perakitan bagian
