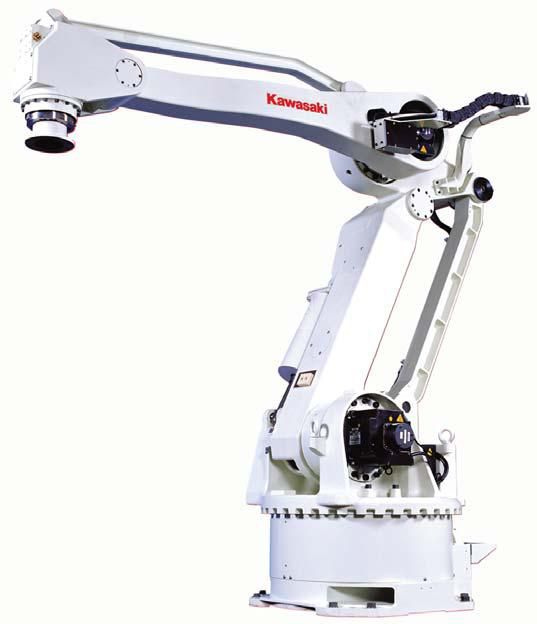

Kawasaki ZD250S

Awaiting more stock
Kawasaki palletizing robots are ideal for the application of high pallets, multiple product handling; They have a wide horizontal range of up to 3,255 mm and a payload capacity of up to 700 kg providing high speed distribution processes.
Robot ZD250S designed for palletizing for medium to heavy loads of high speed, 4 axes capable of handling products vertically up to 3,075 mm, offers maximum flexibility and efficiency of the production line.
Main specifications
Maximum Load of Robot: 250 kg
Number of axis: 4
Horizontal Reach: 3,255 mm
Vertical Reach: 3,075 mm
Repeatability: ±0.5 mm
Controller: E33, E43, E23
Motion range (°)
Axis JT1: ± 180°
Axis JT2: +90 /–50
Axis JT3: +15 /–120
Axis JT4: ±360°
Maximum speed (°/s)
Axis JT1: 135°/s
Axis JT2: 110°/s
Axis JT3: 130°/s
Axis JT4: 400°/s
Robot applications
Material handling


Pembuatan palet , Penanganan suku cadang
