Kawasaki YF003N

Awaiting more stock
The Kawasasi Y series is designed for the pick and place application operating at high speed providing short cycle times of up to 0.27 seconds, large working envelope of up to 1300 mm in diameter, complies with the hygiene standards required for the industry food, pharmaceutical, cosmetics, electronics, etc; optimizing performance and productivity.

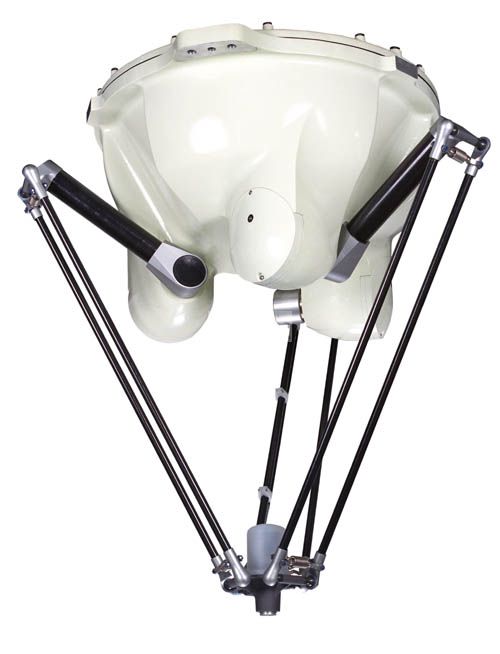

Robot YF003N designed for pick and place of high speed, type of parallel link, with a range of movement of 1,300 mm in diameter and 500 mm in vertical direction, The arm is designed for washing with acidic or alkaline cleaners, thus making sure the cleaning in the production plants, offers high repeatability in pick & place processes and high productivity. Ideal for different types of work pieces.
Main specifications
Maximum Load of Robot: 3 kg
Number of axis: 4
Horizontal Stroke: 1,300 mm / 900 mm
Vertical Stroke: 300 mm / 500 mm
Max. Linear Speed: 10,000 mm/s
Repeatability: ±0.1 mm
Controller: E30, E97, E30, E91, E40, E94
Motion range (mm)
ø1,300 × H500
Robot applications
Material Handling


Penanganan suku cadang , Perakitan bagian
